High‑performance urethane pipeline pigs for cleaning, batching, displacement and integrity support – available in cup and disc designs plus specialty variants for unique operating conditions. Size coverage 2″–20″, with color‑coded Shore A durometers (60/70/80/90) for fast field identification and selection. Also compatible with steel‑alternative pipelines.
Argus urethane pigs are engineered for daily pipeline work and specialized programs. Cup and disc bodies handle debris removal, batching, and displacement. Specialty models extend capability to non-intrusive pig signaling (Mag), corrosion-inhibitor film application (Filming), y low ΔP pigging (Low-Flow).
How to specify (quick):

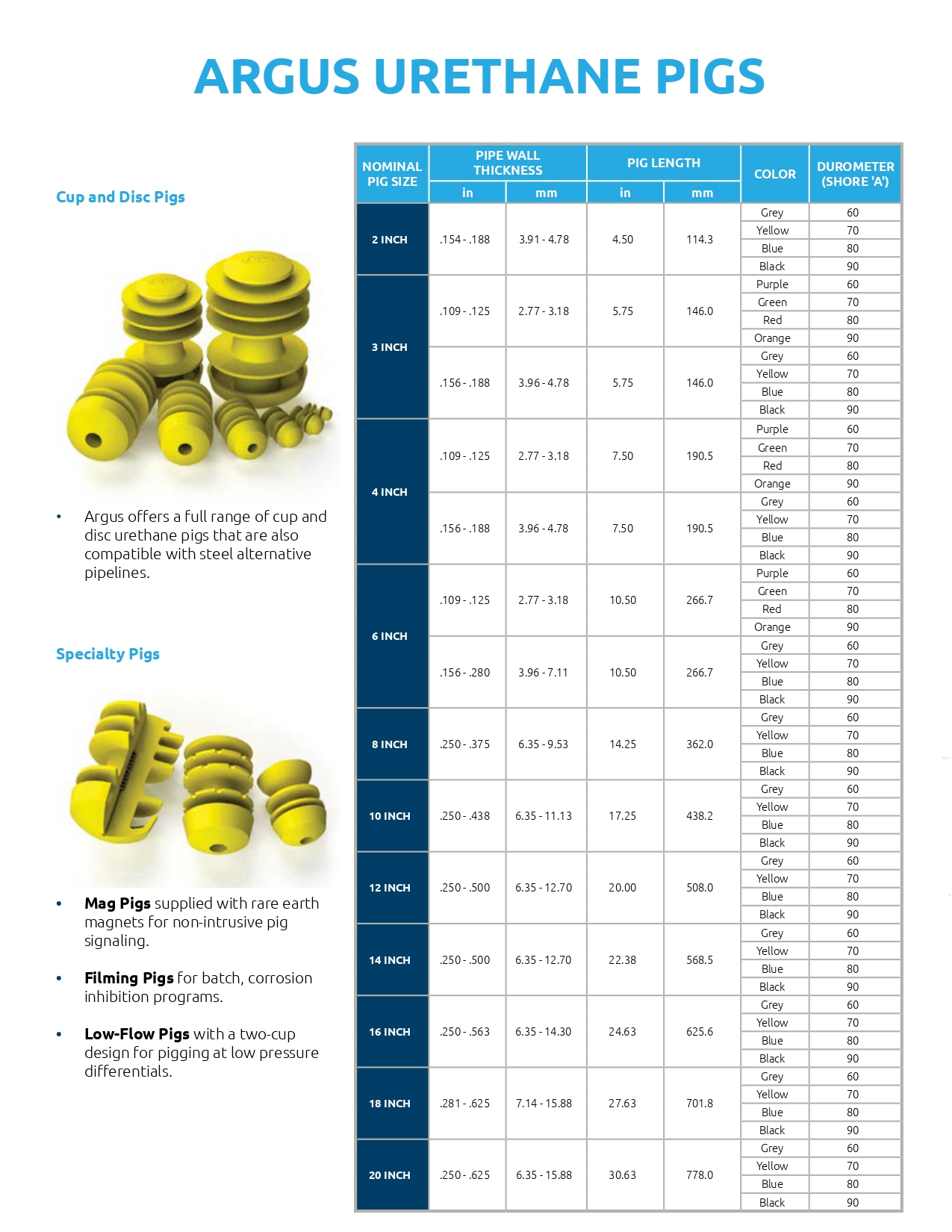

Dimension examples (from the spec sheet to help selection): 2″ → wall 0.154–0.188″, length 4.50″; 6″ → wall 0.109–0.280″, length 10.50″; 12″ → wall 0.250–0.500″, length 20.00″; 20″ → wall 0.250–0.625″, length 30.63″.
Workhorses for cleaning, batching, displacement across 2″–20″ sizes; the spec sheet lists pipe wall thickness windows for each size and the standard pig length.
Equipped with rare earth magnets for non-intrusive pig signaling and pass tracking.
Purpose-built for batch/corrosion-inhibition programs, helping apply chemical film uniformly.
A two-cup design enables pigging at low pressure differentials, ideal for startup and slow-rate operations.
Se pueden ofrecer diseños, acabados y materiales personalizados bajo petición. Consulte el folleto para obtener las especificaciones completas de los productos estándar.
Parámetro | Detalles |
|---|---|
Size coverage | 2″–20″ with published pipe wall ranges and standard lengths by size. |
Material & ID | tough urethane with color‑coded durometers (Shore A 60/70/80/90). |
Core designs | Cup & Disc for routine cleaning/batching; Mag/Filming/Low‑Flow for specific needs.
|
Pipeline compatibility | Suitable for steel and steel‑alternative pipelines.
|
