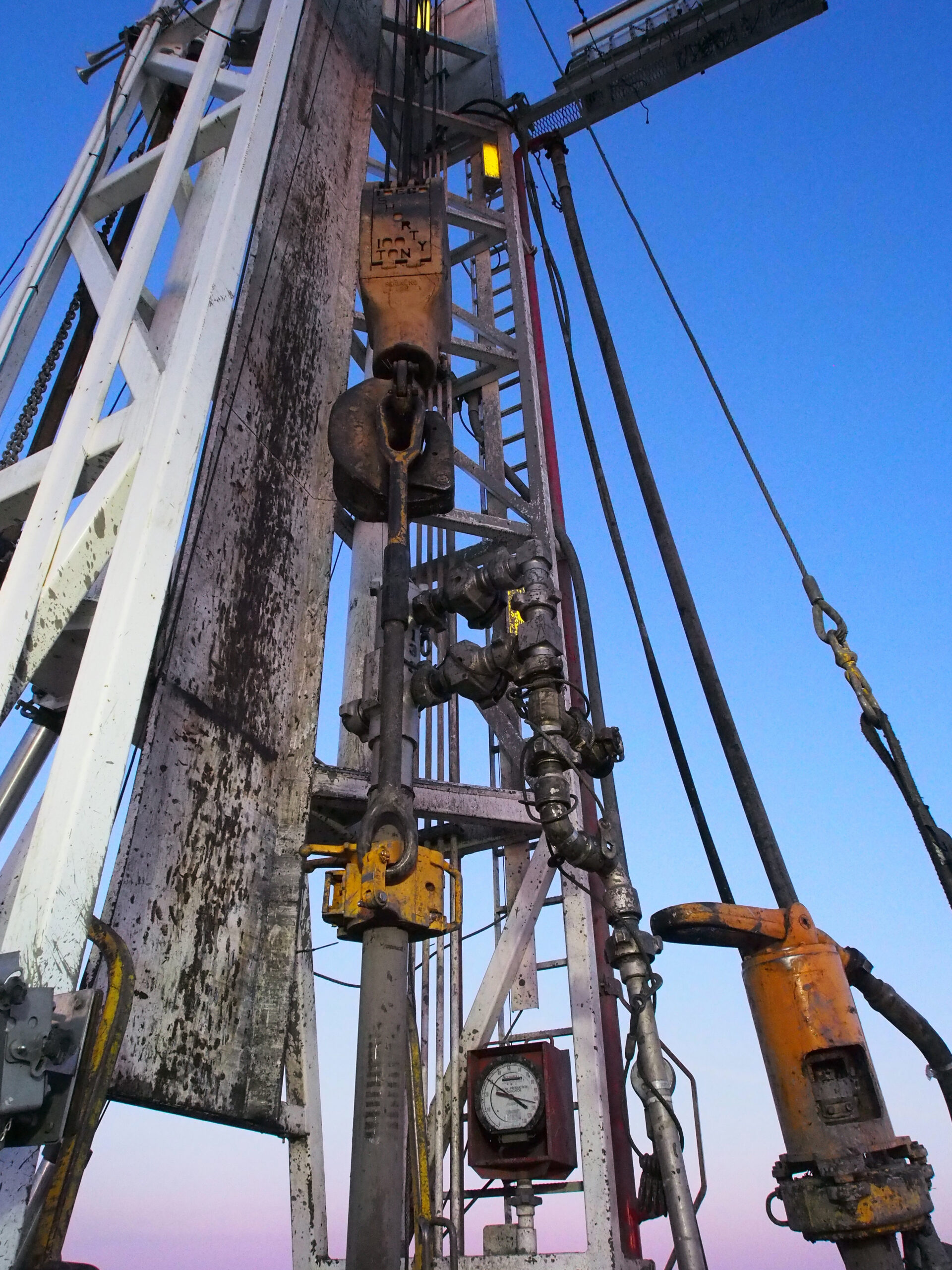

Engineered for precision and safety in primary, stage, and liner cementing operations. Argus Cement Heads deliver controlled plug release, top-drive compatibility, and API-compliant performance for efficient, reliable well cementing across any rig configuration.
Argus manufactures casing and drill pipe cement heads for primary, remedial, and stage cementing on vertical, directional, and horizontal wells. Choose single-plug or double-plug bodies for casing programs, or the drill pipe cement head for liner jobs. Options include top-drive caps, the Argus Quik-Connekt (AQC) adapter for fast orientation, and plug-pass indication for positive confirmation. Rated up to 10,000 psi.

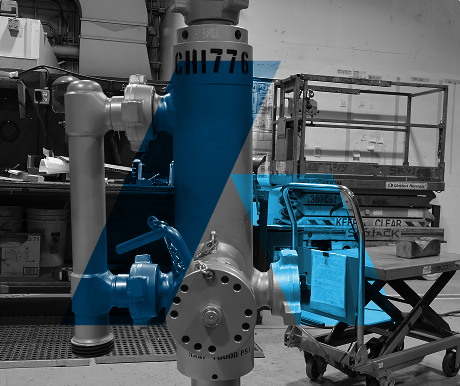

Attaches to the casing; holds and releases casing plugs to separate spacer, cement, and displacement fluids. A retractable pin with quick-start thread secures the plug until deployment; the plug chamber is designed for free-fall once released. AQC lets crews orient the head to the pump line without disturbing casing make-up; interchangeable cap for top-drive rigs.
✓ Configurations: single-plug / double-plug; conventional or top-drive.
✓ Sizes: API 4 1/2″–20″ casing.
✓ Pressure rating: up to 10,000 psi.
✓ Key features: retractable locking pin (quick-start thread), free-fall plug chamber, AQC orientation, 2″ Fig 1502 inlet for plug-pass, shared operating handle, lift plug with swivel.

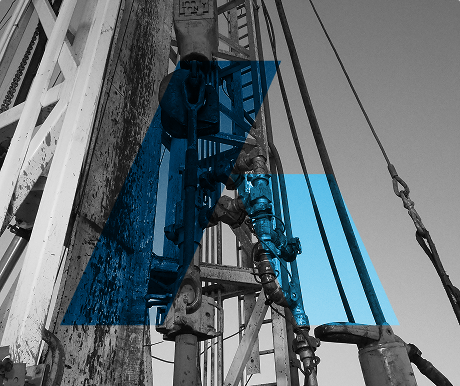

Attaches to the drill pipe/running string, releases the pump-down plug that latches the liner wiper plug; includes a heavy-duty bearing swivel to rotate the string for liner-tool release. Plug pass indicator is standard.
✓ Sizes: 3 1/2″, 4″, 4 1/2″ drill pipe.
✓ Pressure rating: up to 10,000 psi.
✓ Key features: retractable locking pin, heavy-duty bearing swivel, plug-pass indicator (standard), pick-up sub.
Casing and rotary swages are precision-manufactured to meet API standards, ensuring strength, safety, and compatibility across drilling and production operations.
Specifications:
✓ Casing Threads: Manufactured in accordance with API Spec 5B.
✓ Rotary Threads: Manufactured in accordance with API Spec 7-2.
Features:
✓ Optional 2″ 1502 female hammer union thread half (3″ 1502 available)
✓ Available with API casing or rotary thread connections
✓ Premium threads and other connection types available upon request
✓ Equipped with swivel ring for safety line tie-off and ease of handling
✓ See product brochure for detailed specifications.
Connects an Argus Casing Cement Head to the top of the casing string, enabling quick, non-rotational connection and alignment to the pump line without disturbing casing make-up.
Available with API or premium casing connections and designed to support full API casing sizes from 4 1/2″ to 20″.
✓ Casing Circulating Cap: API 4 1/2″–20″, 10,000 psi, 2″ Fig 1502 top inlet, can pressure-test casing and act as a handling plug.
✓ Casing Circulating Swage: API tubing 2 3/8″–4 1/2″, casing 4 1/2″–20″, 10,000 psi, well-control circulation during casing run.
✓ Drill Pipe Circulating Swage: API drill pipe 2 3/8″–8 5/8″, 10,000 psi, maintains pressure & circulation during drilling pauses.
The Casing Cement Head offers greater versatility for primary and stage cementing with AQC orientation and top-drive compatibility. The Drill Pipe Cement Head is optimized for liner jobs, providing rotation and a built-in plug pass indicator for precise plug release.
Parameter | Casing Cement Head | Drill Pipe Cement Head |
|---|---|---|
Primary / Stage Cementing | ||
Top Drive Compatible | ||
Double Plug Option | ||
Rotatable During Operation | ||
Plug Pass Indicator | Optional | |
AQC Orientation System |
Custom designs, trims, and materials are available upon request. Refer to the brochure for full specifications of standard products.
Parameter | Details |
|---|---|
Size Range | Casing: API 4 1/2″–20″ • Drill Pipe: 3 1/2″, 4″, 4 1/2″ |
Pressure Rating | Up to 10,000 PSI
|
Configurations | Casing: Single or Double Plug (Conventional or Top Drive) • Drill Pipe: Single Plug |
Connections | Casing: API or Premium (AQC Orientation) • Drill Pipe: API Drill Pipe Threads
|
Key Features | Retractable locking pin (quick-start thread), free-fall plug chamber, AQC orientation, 2″ Fig 1502 plug-passport, heavy-duty bearing swivel (Drill Pipe), plug-pass indicator (standard on Drill Pipe)
|
Applications | Primary, stage, remedial, and liner cementing operations
|
