Automated pigging solutions for high-frequency and remote operations. Capable of up to 11 launches per load and fully operable with flexible actuation options – manual, electric, solar-electric, or pneumatic.

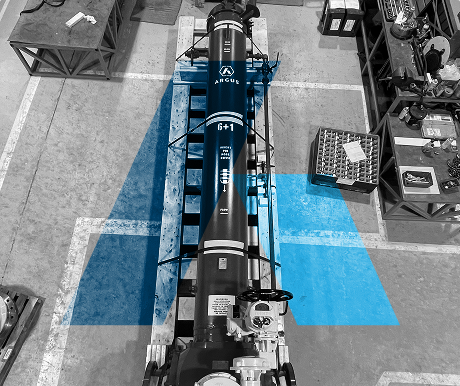

The Argus Multi-Pig Launcher (MPL) enables operators to preload up to eleven (11) pigs and launch each automatically without further human intervention. Designed for high-frequency or remote pigging, the MPL reduces operational costs, emissions, and manual handling. Operators can initiate launches remotely to sweep liquids and debris, stabilize flow, mitigate corrosion, and lower OpEx. Ideal for remote wells, offshore platforms, and pads with ESG targets, the MPL helps maintain pigging schedules while minimizing site visits and venting delivering a measurable path to emissions reduction.
Find out exactly how much a Multi-Pig Launcher can save you.
Contact us for your personalized cost and emissions calculation.
Designed for operator protection and control minimizing travel, manual handling, and pressurized risk.
✓ Remote pigging reduces field travel, the highest-risk operator activity.
✓ Pressure alert valve and groove provide audible warnings before opening.
✓ Non-impact wrench and entry cap eliminate hammering and sparking hazards.
✓ Alignment arrows, flow labels, and vertical entry cap reduce installation errors and prevent horizontal pressurized openings.
✓ Actuation lockout ensures safe maintenance and prevents accidental operation.
Overview:
The Argus MPL is adaptable to your control and power environment, supporting both manual and fully automated configurations.
Available Actuation Types:
✓ Manual: Lever or gear-operated
✓ Electric: 110/220 VAC single phase; 240/480 VAC three phase (Class I, Div 1)
✓ Solar Electric: 12/24 VDC (Class I, Div 1) — ideal for remote sites
✓ Pneumatic: Fuel gas, instrument air, or nitrogen actuation
Overview:
Each MPL is built to Argus’ rigorous quality and compliance framework, ensuring full alignment with global safety and performance standards.
Compliance & Testing:
✓ Valve Design: API 6D (pipeline valve standard)
✓ Fire Testing: API 6FA, API 607, ISO 10497
✓ Quality Management: API Q1, ISO 9001
✓ Design Codes: ASME B16.5, B16.10, B31.3; CSA Z662
✓ Materials: NACE MR0175 / ISO 15156 for sour service applications
Overview:
Engineered for simplicity and safety — the Argus MPL’s operational sequence minimizes manual handling while enabling remote pigging and emissions control.
Typical Procedure:

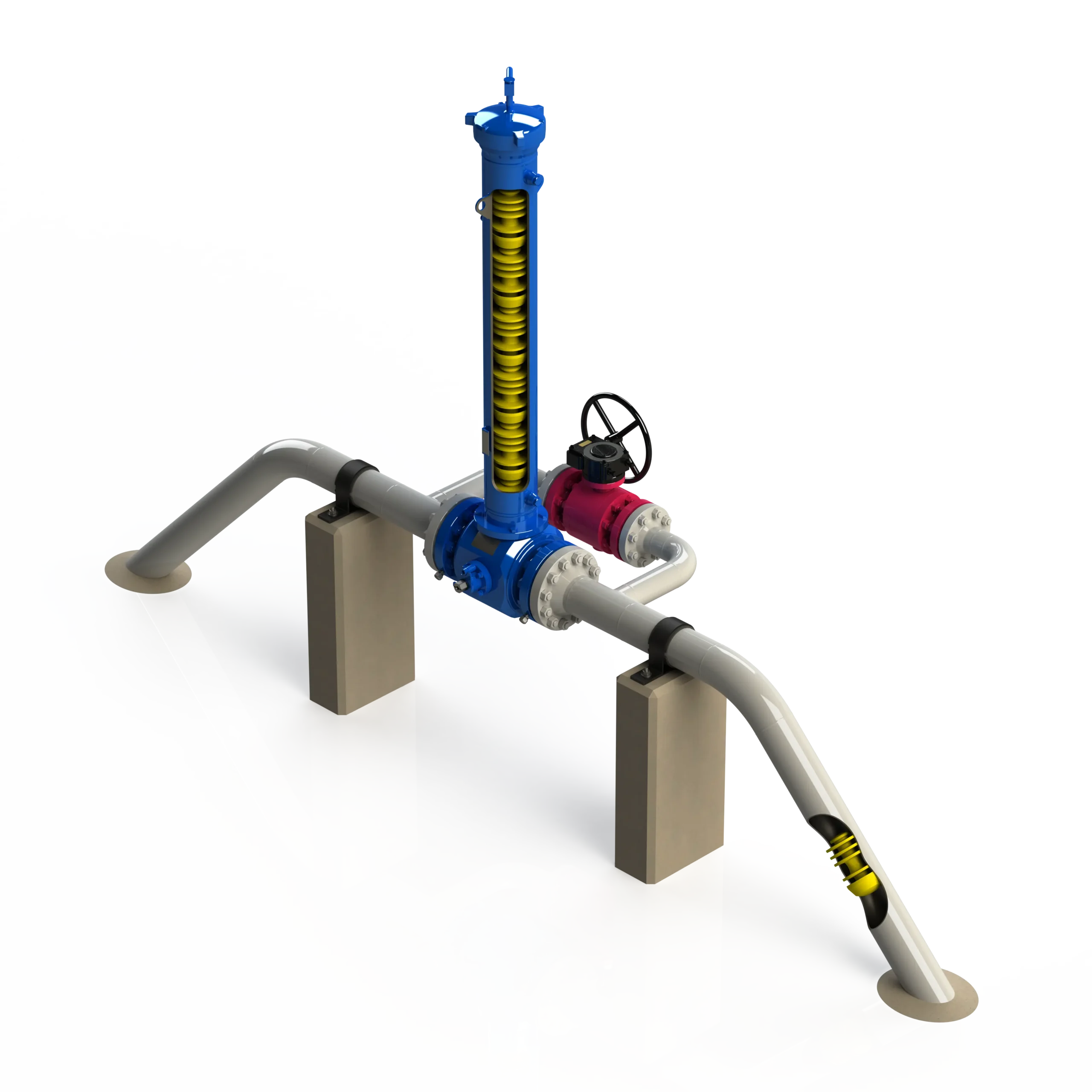

The Argus Multi-Pig Launcher (MPL) automates pigging with a compact, gravity-assisted design that simplifies operation and reduces emissions. Unlike automated barrel or sphere traps, it eliminates complex mechanisms, cuts installation costs, and increases reliability.
Parameter | MPL | Automated Barrel |
|---|---|---|
Corrosion and Paraffin Mitigation | ||
Automation | ||
Lower Total Cost (OPEX + CAPEX) | ||
High Reliability | ||
Environmentally Friendly | ||
Compact & Light Weight |
Custom designs, trims, and materials are available upon request. Refer to the brochure for full specifications of standard products.
Parameter | Details |
|---|---|
Size Range | 2″–20″
|
Pressure
| 150 – 1500 ASME Class
|
Temperature | -20F to +250 F (-46C to +121C)
Higher temperature ratings upon request.
|

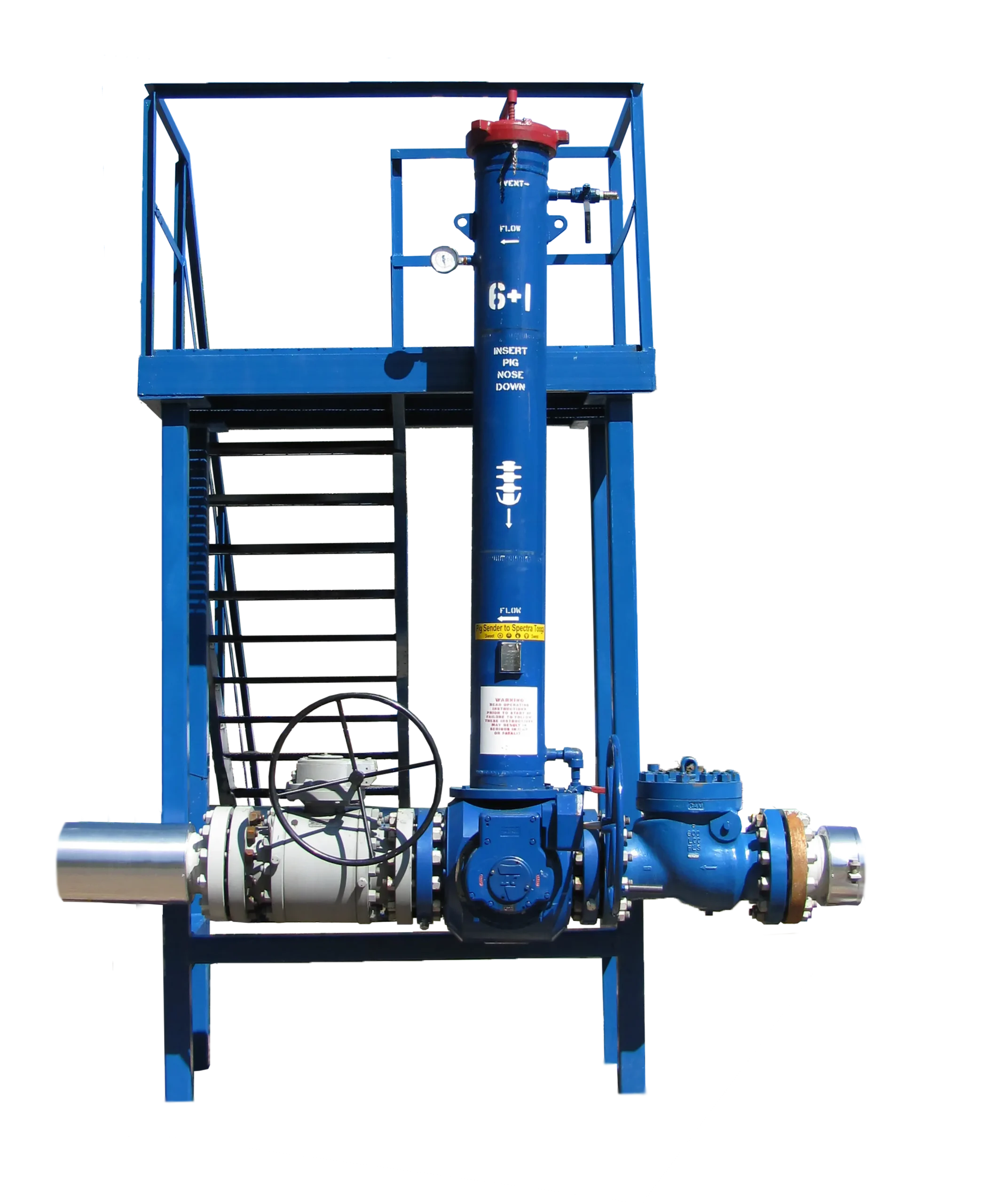

Capacity Options | 10 + 1 (11 pigs) for 2″–6″ (ASME 150/300/600); 6 + 1 (7 pigs) for 6″-900 and 8″–20″ |
Pressure Classes
| ASME 150–600 standard; select sizes to 1500 (fire-test cert.)
|
Actuation
| Manual, Electric, Solar-Electric, Pneumatic
|
Safety Features | Pressure alert valve & groove, non-impact entry cap, alignment arrows, vertical cap orientation, actuation lockout |
Material Traceability | All critical parts certified per API & ASME requirements |
Applications | Remote pads, offshore facilities, multi-well sites requiring frequent pigging |
Compatible Pigs | Works with Argus urethane pigs (cup/disc + specialty Mag/Filming/Low-Flow) |
Access our product brochures below
Loading playlist...

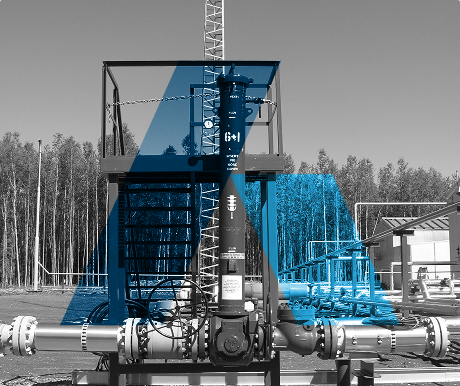

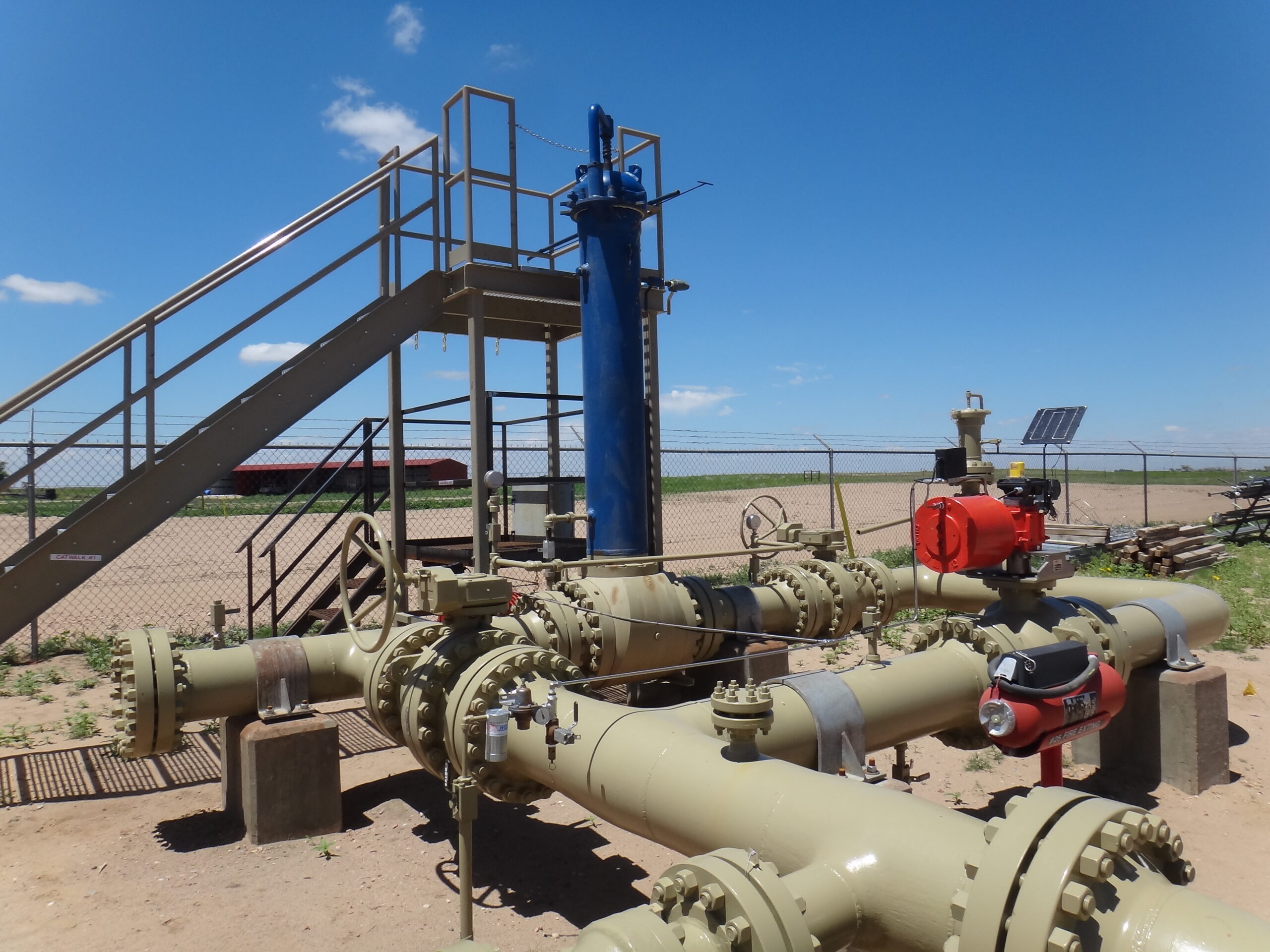

From the remote Canadian wilderness to the mountains of Colorado, operators trust Argus MPLs to perform in some of their most remote and liquid-rich pipelines.
